Rear Left Side Tail Light Lamp Fits For Toyota RAV4 1998-2000 Halogen or LED
 | Auto tail lamp for Toyota RAV4
|
Toyota RAV4 1998-2000 tail lamp is the rear combination lamp assembly for the first-generation RAV4, usually the facelift/later XA10/SXA1# model.
Basic details
Toyota part name：Lamp Assy, Rear Combination
Common name：Tail lamp assembly/rear combination lamp/stop tail lamp
Matching RH side：81550-42050
Lens-only LH reference：81561-42050
Vehicle：Toyota RAV4 1st Gen/RAV4 I
Model code family：SXA1#/XA10 family
Main fitment period：Around 09/1997 onward, commonly sold as 1998-2000
Appearance features

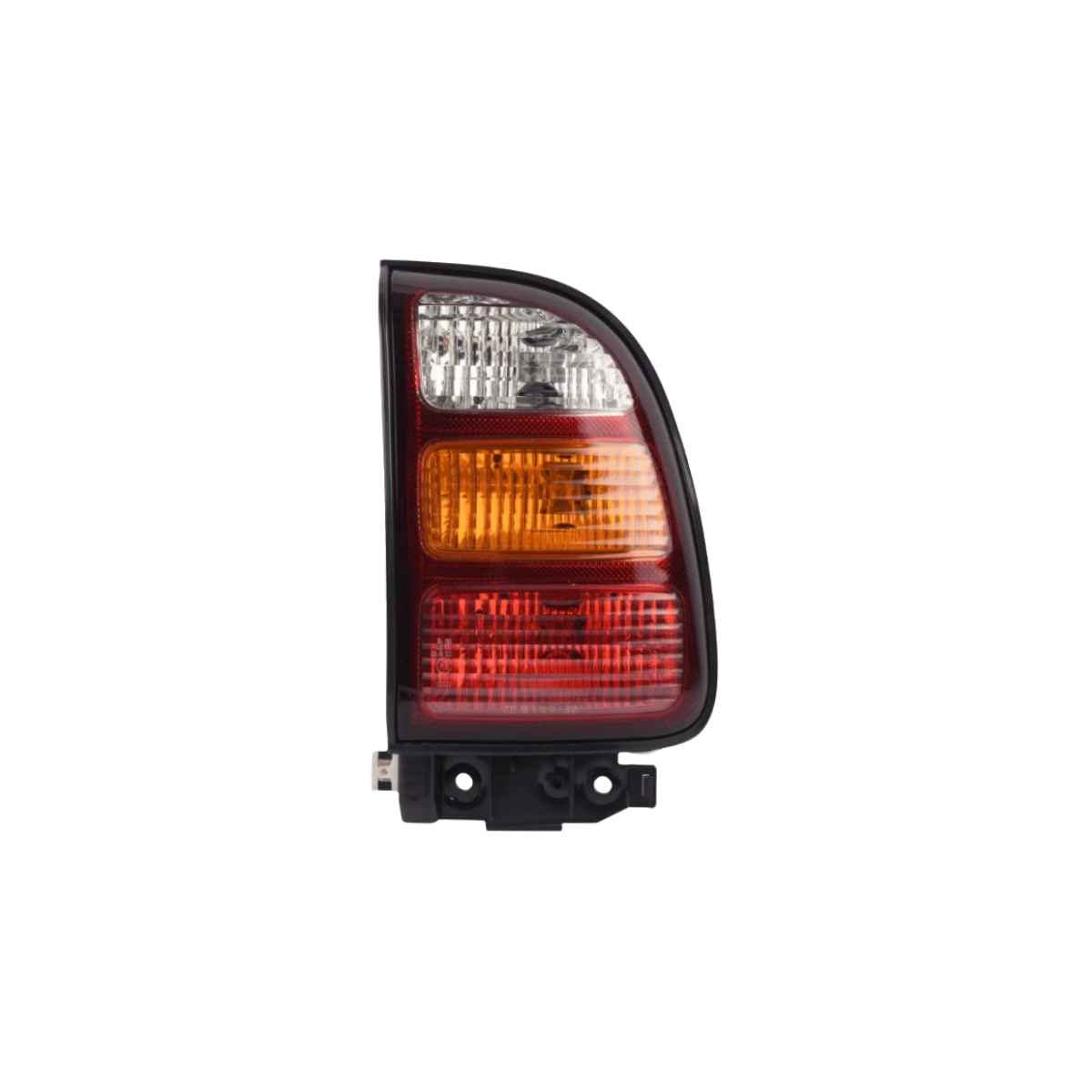

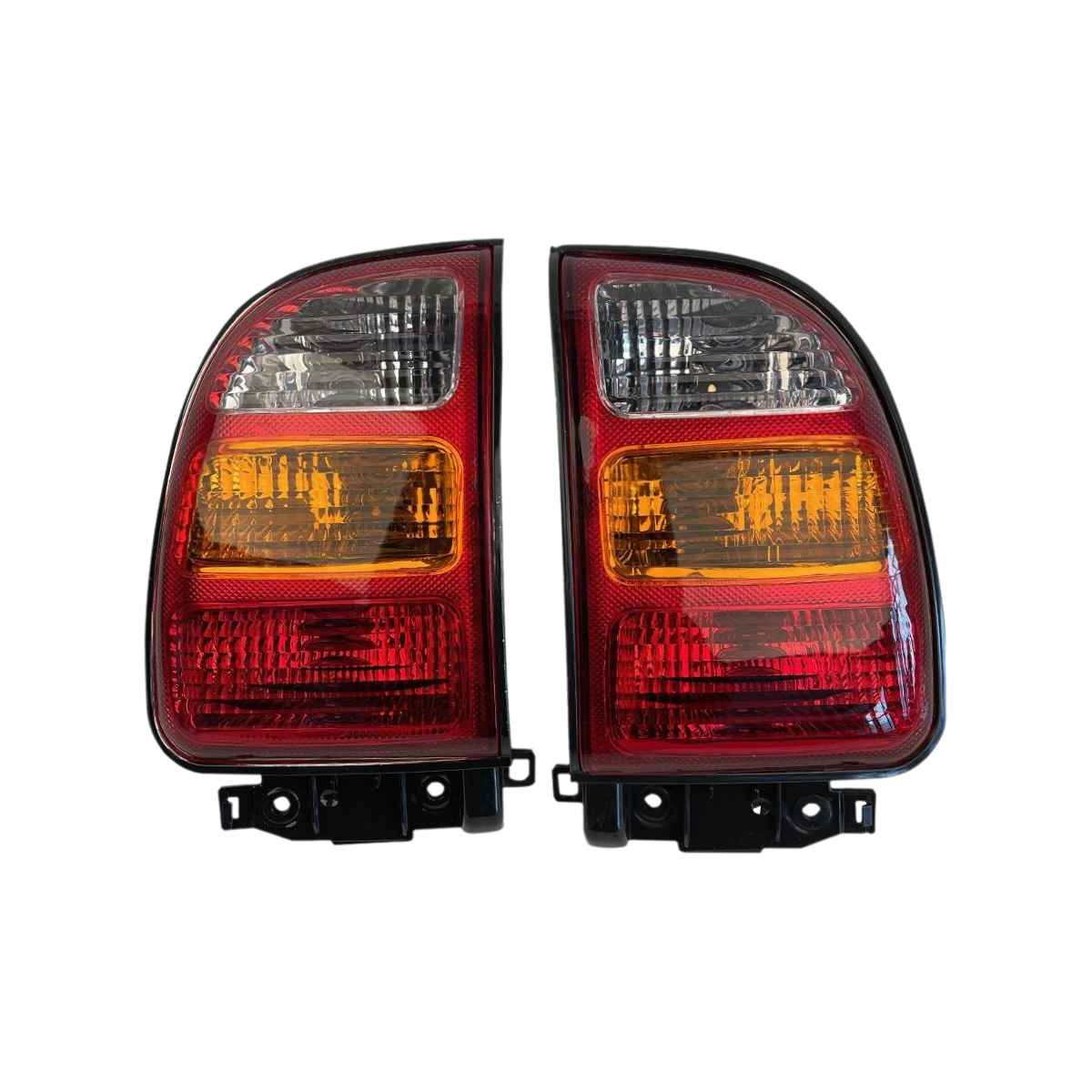

This later 1998–2000 RAV4 tail lamp usually has a vertical three-section lens layout:
Top：Clear/white Reverse lamp
Middle：Amber/orange Turn signal
Bottom：Red Tail lamp + brake/stop lamp
Bulbs used inside
Catalog data for this rear combination lamp family shows bulbs such as:
Bulb function Catalog bulb reference Rating
Rear combination/stop-tail type：90981-11043/replacement 90981-13044 12V 21/5W P21/5W
Turn/single-filament type：90981-11042/90981-13043 12V 21W P21W
Those tail lamps include standard and LED.
