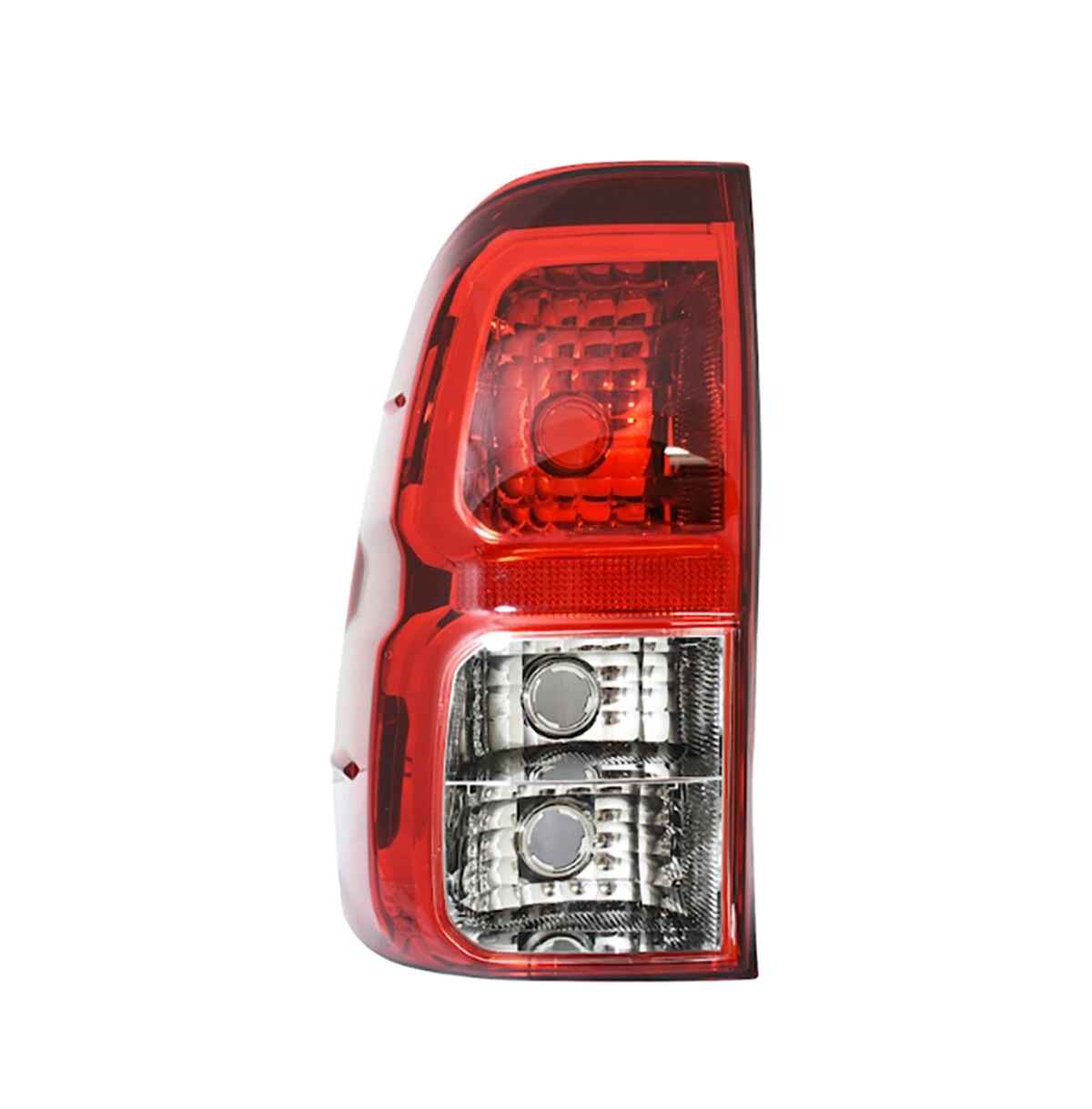

New Brown Rear Tail Lamp Assembly Compatible with Toyota Hilux Revo 2015-, White Clear Lens Section Replacement
 | Auto Tail Lamp for Hilux Revo 2015
|
Genuine-parts listings show 81550-0K270 as RH/right rear combination lamp and 81560-0K270 as LH/left rear combination lamp. Some aftermarket listings may label sides inconsistently, so it is better to confirm by photo, side, and vehicle VIN before ordering.
1. Lighting functions
A Hilux Revo rear tail lamp is usually a combination lamp, meaning several lighting functions are integrated into one housing:
Tail/position light: Low-brightness rear visibility when lights are on Red
Stop/brake light: Bright red light when brake pedal is pressed Red
Rear turn signal: Indicates left/right turning Amber or amber bulb behind clear lens
Reverse light: White light when reversing Clear/white lens
Rear fog light, market-dependent: Extra rear visibility in foggy conditions Red
2. Structure and components
A complete rear tail lamp assembly may include:
Outer lens: Red and clear/white plastic lens
Housing: Usually ABS or automotive-grade plastic
Reflector: Internal reflector to distribute light
Bulb sockets: May be included or not, depending on supplier
Bulbs: Some versions include bulbs; many aftermarket versions do not
Wiring harness: Some versions include harness; some require reuse of original harness
Sealing gasket: Helps prevent water and dust entry
Mounting points: Designed to fit original rear body mounting locations
Some supplier listings specifically describe versions as tail lamp assembly with socket, bulb, and E-mark, while other listings sell versions with socket but without bulb. That means you should always confirm the included parts before purchase.
3. Bulb information
For non-LED versions, common bulb references found in aftermarket listings include:
Brake/tail light: P21/5W
Turn signal: PY21W
Reverse light: P21W
Aftermarket listing for Hilux Pickup 2015+ shows bulb types PY21W, P21W, and P21/5W, and notes that the lamp is supplied without bulb.
4. Normal version vs LED version
There are usually two product types in the market:
Standard/bulb type: Uses replaceable halogen/incandescent bulbs. Usually closer to original basic design. Easier and cheaper to repair.
LED type: Uses LED light source. Often has a modern appearance and stronger styling. Some LED versions may require checking plug compatibility and warning-light behavior.
Some suppliers list both normal version and LED different-color versions for Hilux Revo rear lamps.
5. Fitment notes
This lamp is mainly for:
Toyota Hilux Revo 2015-onward pickup models
However, there can be differences depending on:
Year: 2015-2018, 2019-2020, 2021+ facelift versions may differ by market
Side: RH and LH are not interchangeable
Market: LHD/RHD, Asia, Middle East, Europe, Latin America versions may differ
Lamp type: Bulb type and LED type may use different wiring or sockets
E-mark requirement: Some markets require E-mark certified lamps
Harness/socket: Some lamps require original socket/harness reuse
For wholesale/cross-reference use, suppliers commonly list Hilux Revo rear lamp OE references including 81550-0K260, 81560-0K270, 81550-0K270, and 81560-0K260 for 2015+ Revo applications.
6. Installation information
The tail lamp assembly is usually a direct replacement part. Installation normally involves:
Open the tailgate.
Remove the rear lamp mounting screws or bolts.
Pull out the old lamp carefully.
Disconnect the wiring connector.
Transfer bulbs/sockets/harness if the new lamp does not include them.
Install the new lamp and tighten evenly.
Test tail light, brake light, turn signal, reverse light, and hazard light.
Check sealing to avoid water leakage.
Professional installation is recommended if the wiring connector, socket type, or LED version is different.
7. Common quality points to mention
For a better product listing, you can mention:
Clear lens : Improves appearance and rear visibility
Accurate mounting points: Helps direct replacement installation
Good sealing: Reduces water misting and leakage
Durable plastic housing: Helps resist vibration and road conditions
Reflective inner design: Improves light output and signal visibility
Plug/socket compatibility: Reduces installation modification
8. Copy-ready detailed listing
Reference OE Number:
Common RH reference: 81550-0K270.
Common LH reference: 81560-0K270.
Material and Construction:
Automotive-grade plastic housing with red and clear lens. Designed for rear exterior use and everyday road vibration.
Lighting Functions:
Tail light, brake/stop light, rear indicator, reverse light, and market-dependent rear fog light.
Package Options:
Available as lamp only, lamp with socket, lamp with bulb, or lamp with wiring harness depending on supplier version. Please confirm before ordering.
