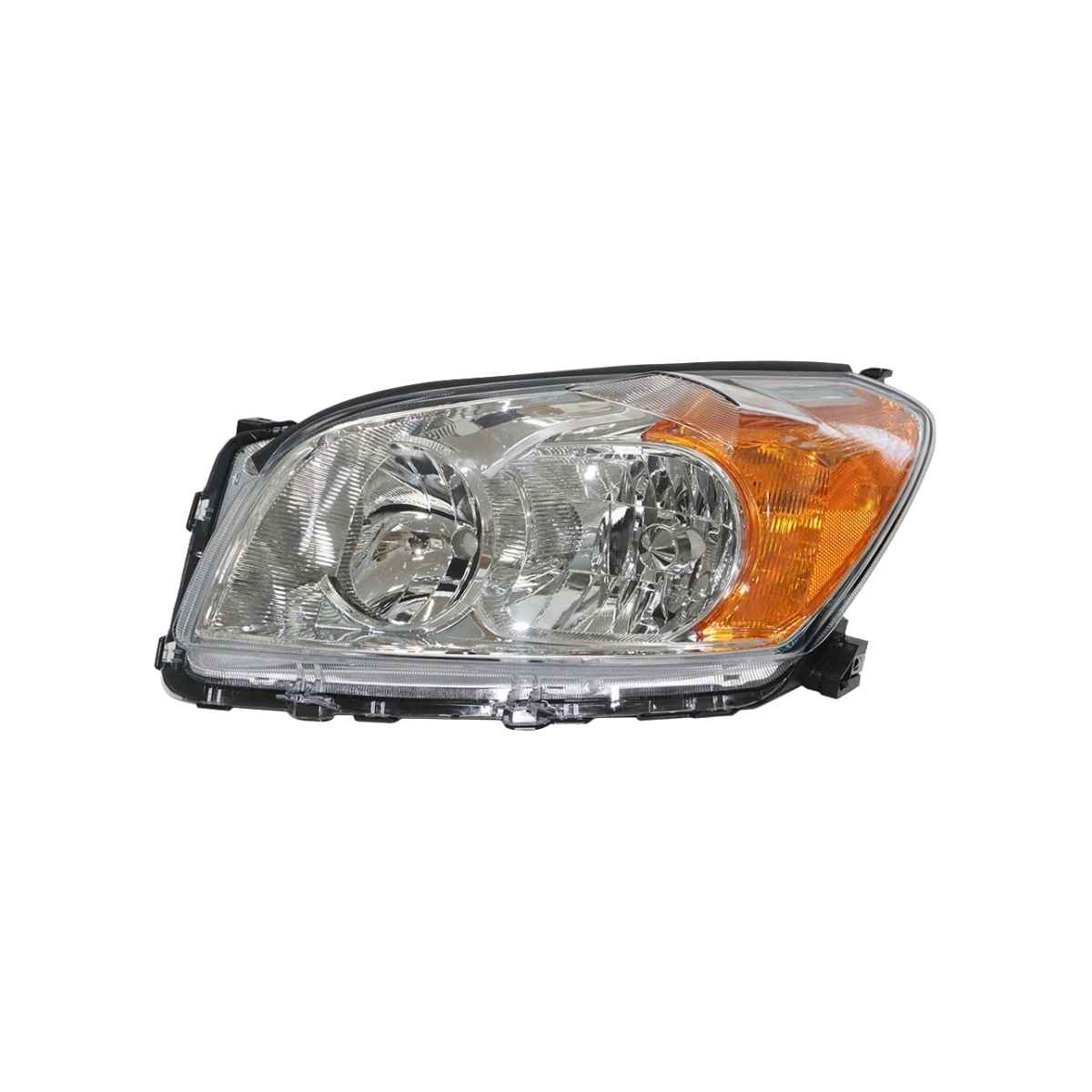

New Brown Headlight Assembly Compatible with 2009-2012 Toyota Rav4 Replacement
 | Car Headlight compatible with Rav4 2009-2012
|
For the 2009–2012 RAV4, common replacement references are 81130-42480/TO2503188 for the right passenger side and 81170-42480/TO2502188 for the left driver side. Toyota parts listings also identify 81130-42480 as a right/front-right headlamp assembly for 2009-2012 RAV4 and describe it as "2009–12, Sport, Japan built."
1. Main lighting functions
A front headlight assembly normally supports several front-lighting functions:
Function Purpose
High beam：Long-distance road illumination
Turn signal/indicator：Front direction signal
Parking/position light：Low-intensity front marker light
Reflector function：Improves front visibility and appearance
This product is usually sold as a complete housing and lens assembly, but the exact included parts depend on the supplier. Some listings include bulbs, while others sell the lamp housing only. New Brown listings for 2012 RAV4 headlight assemblies show halogen units with clear plastic lenses and SAE/DOT compliance, but bulb inclusion varies by part number.
2. Construction and material
Outer lens: Clear plastic/polycarbonate-style lens
Housing: Automotive plastic housing
Reflector: Internal reflective bowl for light distribution
Mounting points: Designed to match original mounting locations
Sealing: Factory-sealed style to reduce moisture entry
Adjustment: Usually includes beam adjustment mechanism
A PartsGeek listing for a 2009-2012 RAV4 headlight set describes the lens material as PC/polycarbonate and the item as a standard replacement headlight assembly.
3. Bulb and light source information
Most 2009-2012 RAV4 replacement headlamp assemblies are halogen type.
Common bulb setup is usually:
Low beam: 9006/HB4
High beam: 9005/HB3
Turn signal: 7440/7443 type, depending on market/version
Parking light: Small wedge bulb, market-dependent
4. Side identification
RH/Right: Vehicle right side when sitting inside the car facing forward
LH/Left: Vehicle left side when sitting inside the car facing forward
Passenger side: Usually RH in the U.S. market
Driver side: Usually LH in the U.S. market
5. Version differences to check
For 2009-2012 Toyota RAV4, headlamp versions may differ by:
Sport vs non-Sport trim: Housing color and shape may differ
Japan-built version: Some listings specifically say “Sport Japan built”
Chrome vs black housing: Appearance difference
Clear vs smoke lens: Appearance and market compliance difference
With bulbs vs without bulbs: Affects package content
CAPA vs non-CAPA: CAPA-certified versions are usually preferred for collision-repair markets
LH vs RH Not interchangeable
6. Installation information
This headlight assembly is usually designed as a direct replacement part.
Typical installation steps:
Open the hood.
Remove upper fasteners and nearby trim if needed.
Remove the old headlamp mounting bolts.
Disconnect the wiring connectors.
Transfer bulbs, sockets, or wiring harness if not included with the new lamp.
Install the new headlight assembly.
Reconnect wiring and test all lighting functions.
Adjust the beam aim after installation.
Important note: Headlight aiming is strongly recommended after installation. Even if the assembly fits correctly, incorrect beam angle can reduce visibility or cause glare to other drivers.
