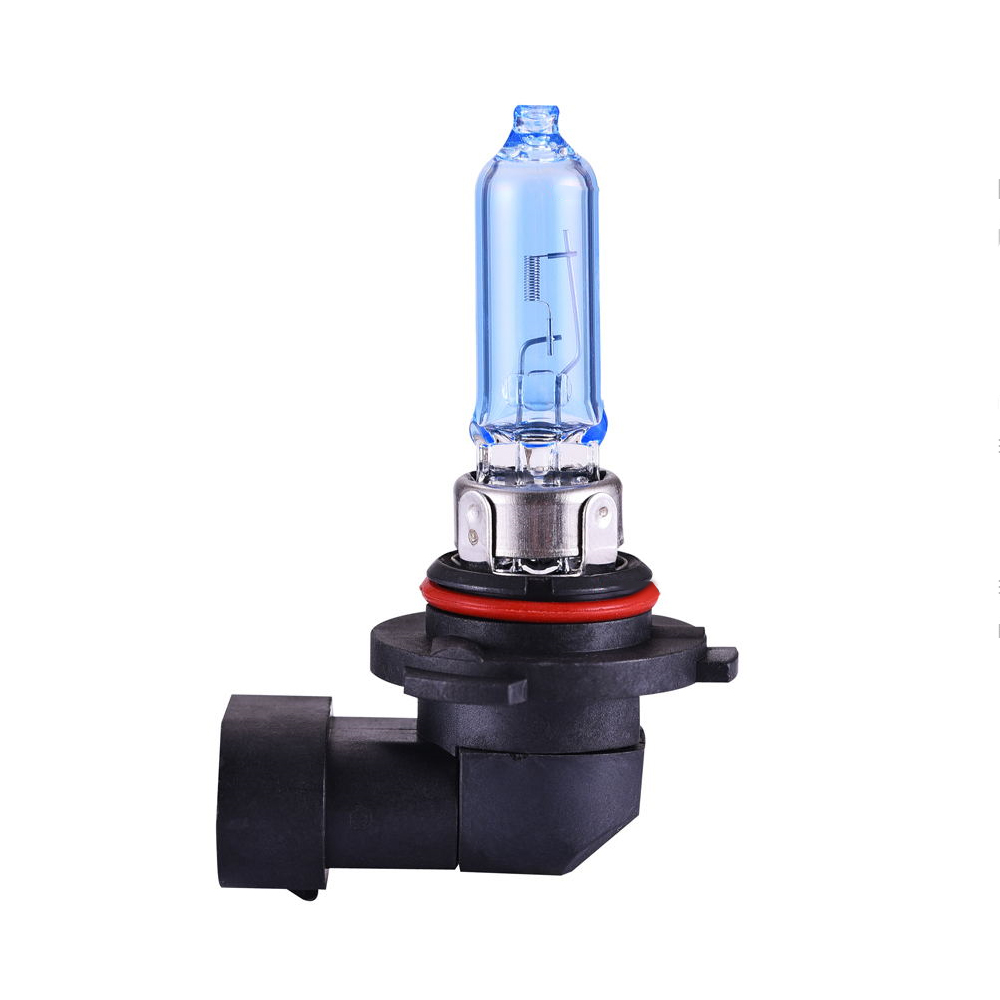

HB3 9005 12V 60W super white auto halogen bulbs
 | 9005 hb3 12v 60w super white
|
9005 HB3 12V 60W auto halogen bulb is a common single-filament headlight bulb, most often used for high beam, and sometimes for front fog lamps depending on the vehicle.
1. Basic specificationBulb9005 HB3
Technology: Halogen
Voltage: 12v automotive system
Nominal wattage: 60w
Test voltage: Usually 13.2v for spec testing Base P20d
Filament: Single filament
Common use: High beam, front fog lamp
Typical lumen range: Around 1700-1860 lm, depending on brand/version
Standard color: Around 3200k warm white
White versions: 3800k, 4300k, 5000k, depending on coating
Newbrow's Original Line 9005/HB3 is listed as 12V 60W, test voltage 13.2V, 1700lm±12%, with P20d base. Philips WhiteVision Ultra 9005/HB3 is also listed as 12V 60W P20d, with 1860lm±12% and up to 3800K color temperature.
2. What "9005" and "HB3" mean
9005 and HB3 usually refer to the same bulb family.
You may see the bulb marked as:
9005 HB3 12V 60W P20d
or sometimes:
HB3 9005 12V 60W
The important things are the base, wattage, and application. For this bulb, the base is normally P20d, which is different from H11's PGJ19-2 base.
3. Electrical meaning
For a 12V 60W bulb, the approximate current is:
I=V/P=60/12=5A
So each 9005/HB3 bulb uses about 5 amps on a 12V system. In real cars, the alternator voltage is often around 13-14V, so the actual brightness and heat can be higher than at exactly 12V. That is why official bulb testing often uses 13.2V.
4. Brightness compared with H11
9005/HB3 is usually brighter than H11.
H11: 55W; Around 1350 lm; Low beam/fog
9005/HB3: 60W; Around 1700–1860 lm; High beam/fog
9006/HB4: 51W; Around 1000–1100 lm; Low beam/fog
For example, OSRAM lists 9005/HB3 at 1700lm±12%, while OSRAM 9006/HB4 is listed at 1000lm±15% and 51W.
5. Lifetime
A normal 9005/HB3 halogen bulb usually does not have extremely long life compared with long-life H11 or HB4 bulbs. OSRAM Original Line 9005 lists B3 lifespan 280 hours and Tc lifespan 550 hours. Philips WhiteVision Ultra 9005 lists 320 hours lifetime.
B3 life: Time by which about 3% of bulbs have failed
Tc life: Characteristic life; often used as a broader lifetime reference
So for 9005/HB3, the main selling point is usually brightness / high beam performance, not longest lifetime.
6. Color temperature
Standard 9005/HB3 halogen is usually around 3200K, which looks warm white/yellowish. White-style bulbs use coating to increase color temperature.
3000-3200K: Standard warm halogen,Good in rain/fog
3800-4300K: Whiter look,More modern appearance
5000K: Super white look Nice style, but coating may reduce useful light
7. Quality points to check
For selling or testing 9005/HB3 bulbs, check these:
Correct marking: Should say 9005/HB3/12V/60W
Base: accuracy P20d base must lock firmly
Filament position: Affects beam focus and glare
Glass quality: Must resist heat and pressure
O-ring seal: Prevents moisture entering lamp housing
Pair consistency: Left and right lamps should match
Lumen test voltage: Compare bulbs at the same voltage, usually 13.2V
Lifetime test: Check stable output after long burn-in
Color coating: Too much blue coating can reduce real road brightness
