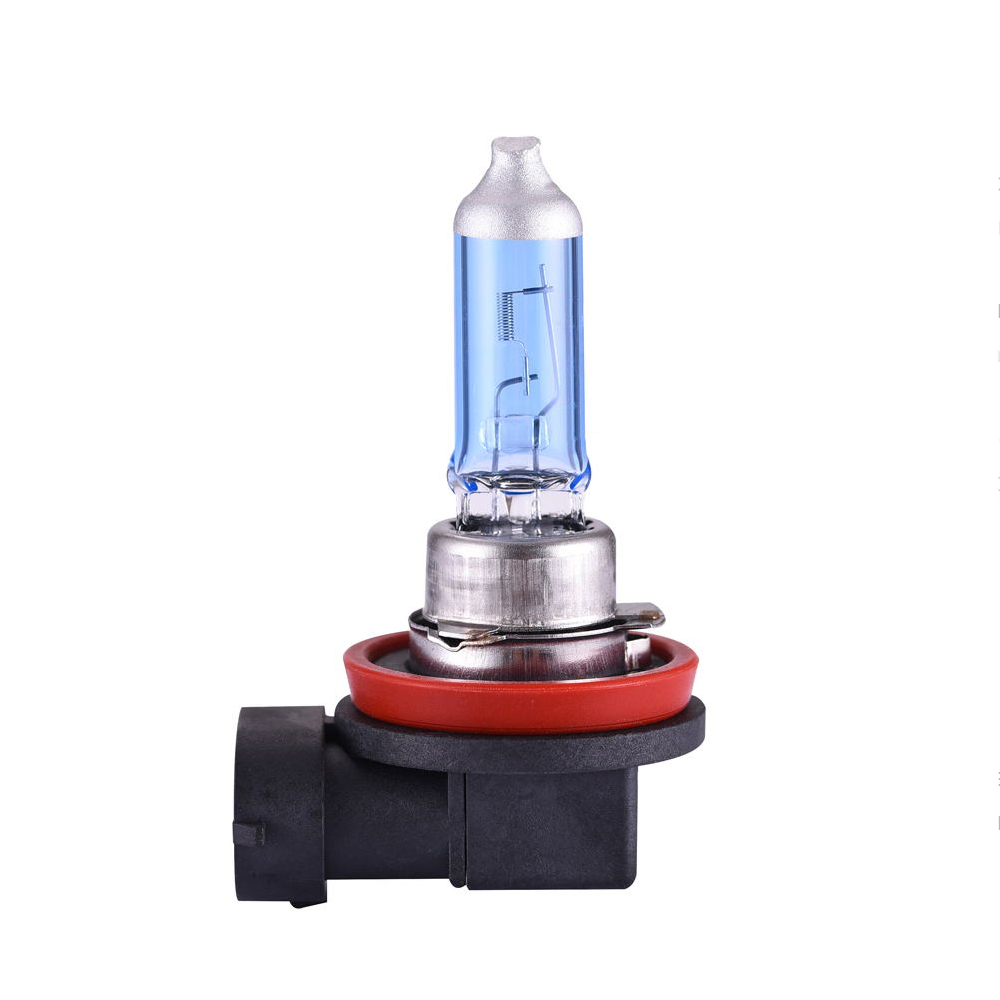

H11 12V 55W super white auto halogen bulbs
 | h11 12v 55w super white
|
H11 12V 55W auto halogen bulb is a very common single-filament automotive bulb, usually used for low beam headlights and sometimes front fog lamps.
1. Basic specificationBulb typeH11
Technology：Halogen filament bulb
Voltage：12V vehicle system
Nominal wattage: 55 W
Test voltage: Usually 13.2 V
Base/socket: PGJ19-2
Filament: Single filament
Typical luminous flux: Around 1350 lm±10%
Typical color temperature: Around 3000-3250k for standard/long-life bulbs
Common applications: Low beam, fog lamp, sometimes high beam depending on vehicle design
2. What “12V 55W”really means
12V means it is designed for normal passenger-car electrical systems. In real cars, the voltage while the engine is running is often higher than 12 V, usually around 13-14V. That is why many bulb specs use 13.2 V as the test voltage.
55W means the bulb consumes about 55 watts nominally. Some official specs also show higher maximum input power; for example, “Newbrown” lists its H11 Original Line as nominal 55W but maximum power input 62w-65w.
3. Brightness: why many brands look similar
For standard legal H11 halogen bulbs, brightness is usually close to 1350 lumens±10%. That means a bulb testing around 1215-1485 lm can still be within the normal tolerance range.
This is why NEWBROWN, Philips, OSRAM, or other correct H11 55W halogen bulbs can test very close in lumens. The bulb type is standardized, so the difference is often not huge in raw lumen output. Philips LongLife EcoVision H11 and OSRAM Original Line H11 both publish 1350 lm±10%.
But brightness is not only about lumens. In a headlamp, these also matter:
Filament position: Affects beam cutoff and road pattern
Glass quality: Affects heat resistance and durability
Coating: Affects color temperature and light loss
Gas pressure/halogen mix: Affects life and brightness stability
Base accuracy Affects focus inside the reflector/projector
So two bulbs can have similar lumens, but one may still give a better beam pattern if the filament position is more accurate.
4. Color temperature: standard vs white light
A normal H11 halogen is usually warm white, around 3000-3250K. Philips LongLife EcoVision lists up to 3100K, while another Philips H11 document lists 3250 K for the two-pack version.
Some “super white” or “5000K” H11 halogen bulbs use blue coating on the glass. OSRAM Cool Blue Intense H11, for example, lists up to 5000 K, but still shows 1350lm±10%.
Important selling point:
"5000K means whiter color, not necessarily higher brightness."
In fact, heavy blue coating can sometimes reduce usable light, because the coating filters part of the yellow light. A good 5000K halogen can look nice, but it may not always perform better in rain or fog.
5. Lifetime: standard, long-life, and high-performance
H11 bulbs usually come in three performance directions:
Standard H11: Balanced price, brightness, lifetime; Nothing special
Long-life H11: Longer service life; Usually not the brightest-looking option
High-performance/extra-bright: Stronger road illumination; Often shorter lifetime
White/5000K style: Better appearance; Sometimes less useful light in bad weather
So if NEWBROWN H11 really reaches around 1500 hours, that is already very competitive for a long-life halogen bulb.
6. H11 vs H8/H9/H16
These bulbs look similar because they belong to the PGJ19-style family, but they are not always safely interchangeable.
H8: 12V 35W, PGJ19-1, Fog lamp
H11: 12V 55W, PGJ19-2, Low beam/fog lamp
H16: 12V 19W, PGJ19-3, Fog lamp/lower-power application
A Japanese lighting catalog lists H8=12V35W PGJ19-1, H11=12V55W PGJ19-2, and H16=12V19W PGJ19-3.
For business, do not tell customers "H8/H11/H16 are all the same." They may fit similarly in some cases, but wattage and tab design can differ. Wrong wattage can cause overheating, weak light, or wiring stress.
7. Quality points to check when buying or selling H11 bulbs
For a good H11 12V 55W halogen bulb, check these:
Marking on bulb: H11, 12V, 55W, ECE/DOT if applicable
Base : PGJ19-2, clean metal, accurate tabs
Glass: Clear, no bubbles, no scratches, no contamination
Filament: Centered and straight
Color consistency: Pair should look the same
Beam pattern: Sharp cutoff, no excessive glare
Lifetime test: Stable performance after long burn-in
Packaging: Protects bulb from vibration and moisture
NEWBROWN emphasizes ECE certification, quartz glass, humidity resistance, UV resistance, and changing headlamps in pairs for symmetrical light performance.
